Introduction
Grooving is a precise and essential machining process that allows manufacturers to create grooves or recesses in workpieces, enhancing the functionality of components across various industries. Whether you’re producing complex aerospace parts, automotive components, or simple mechanical elements, understanding the intricacies of grooving machining is crucial for achieving high-quality results.
In this comprehensive guide, we will explore the world of grooving, from its basic principles to advanced techniques, tools, and materials. Whether you’re a novice or an experienced machinist, this guide will provide valuable insights into optimizing your grooving operations. Let’s dive in!
What is Grooving?
Grooving is a machining process used to create narrow, precise cuts or recesses on a workpiece. It is an essential technique in precision machining, enabling the creation of grooves for components such as seals, O-rings, and other mechanical fasteners. These grooves are crucial for enhancing the functionality and performance of parts used in industries like automotive, aerospace, medical devices, and more.
At its core, grooving is a cutting process that removes material from the surface or inner diameter of a workpiece, creating a defined groove with specific geometry. The technique is widely used due to its accuracy, versatility, and efficiency.
Types of Grooving Techniques
There are several types of techniques, each suited to different applications. Choosing the right technique depends on factors like the groove’s shape, the material being worked on, and the desired precision.
1. Straight Turning
Straight turning is one of the most common and straightforward techniques. It involves making linear cuts along the length of a workpiece, typically for creating open grooves or reducing the diameter of a part.
- Applications: Straight turning is used in applications where simple, straight grooves are needed, such as in shafts or cylindrical parts.
- Advantages: It’s an efficient method for achieving consistent groove dimensions with minimal complexity.
- Key Considerations: The tool used for straight turning must be sharp to ensure precision and avoid tool wear.
2. Face Grooving
Face grooving is used to create grooves on the face or end of a workpiece. This technique is essential when the groove must be axially aligned with the workpiece, often in applications like sealing surfaces or component assembly.
- Applications: Common in the manufacturing of parts like flanges, sealing rings, and end faces of machine components.
- Advantages: It allows the tool to access hard-to-reach areas of the part, improving flexibility and precision.
- Key Considerations: The tool selection is critical to ensure the tool reaches the intended groove depth without causing damage.
3. Contour Grooving
Contour grooving involves creating grooves that follow specific, often complex geometries. This technique is ideal for parts that require non-linear or non-circular grooves.
- Applications: Used in situations where the groove needs to have a unique shape, such as in components with intricate design requirements.
- Advantages: Offers flexibility in creating custom grooves, allowing for high precision.
- Key Considerations: The process may require advanced programming and precise tool control to achieve the desired geometry.
4. Internal Grooving
Internal groove is the process of creating grooves within the internal diameter of a hollow workpiece, such as tubes or pipes. This technique is widely used for components that need internal seals or fittings.
- Applications: Common in pipe fittings, medical devices, and industrial applications requiring internal grooves.
- Advantages: Allows for the creation of grooves in the interior of parts that would be impossible to access otherwise.
- Key Considerations: Tool length and geometry are critical in ensuring that the tool reaches deep enough into the workpiece for precise cutting.
5. External Grooving
External groove involves creating grooves on the outer surface of a workpiece. This technique is versatile and can be used for a variety of applications, from simple external grooves to more complex shapes.
- Applications: Used extensively in automotive, aerospace, and construction industries for parts like valves, gears, and structural components.
- Advantages: External groove allows for flexibility in designing grooves of various sizes and geometries on the outer surfaces of parts.
- Key Considerations: Careful tool selection is essential to ensure the correct groove size and shape.
Tools Used in Grooving
The selection of tools is crucial in the process. The right tool ensures precision, efficiency, and high-quality results. Here’s a look at some of the most commonly used tools:
Grooving Inserts
Grooving inserts are cutting tools used to create grooves. These inserts come in various shapes, sizes, and materials to accommodate different types of materials and groove geometries.
- Materials: High-speed steel (HSS), carbide, and ceramics are common materials for grooving inserts.
- Applications: These inserts are used for internal and external groove operations and are essential for achieving tight tolerances.
Grooving Turning Tools
Grooving turning tools are specialized tools designed to be used on lathes for operations. These tools come in different sizes and shapes, making them versatile for various needs.
- Applications: Used for creating grooves in cylindrical parts, such as shafts and tubes.
- Advantages: Grooving turning tools are well-suited for continuous operations and high production environments.
Parting Tools
Parting tools are used to cut workpieces into two separate parts. They can also be used to create narrow grooves, particularly when space is tight.
- Applications: Primarily used for cutting off parts but also effective for narrow groove cutting.
- Advantages: These tools are compact and efficient for creating deep, narrow cuts.
Internal Grooving Tools
Internal grooving tools are designed specifically for creating grooves inside hollow workpieces, such as tubes and pipes. These tools come in different lengths and geometries, depending on the depth and size of the groove.
- Applications: Used for internal seal grooves, circlip grooves, and similar applications.
- Advantages: They allow access to hard-to-reach areas and are ideal for precise internal grooving.
External Grooving Tools
External grooving tools are used for creating grooves on the outer surface of a workpiece. These tools are typically designed for parts like gears, flanges, and other components with an external groove.
- Applications: Widely used in the automotive and aerospace industries.
- Advantages: These tools can handle a wide range of groove sizes and geometries.

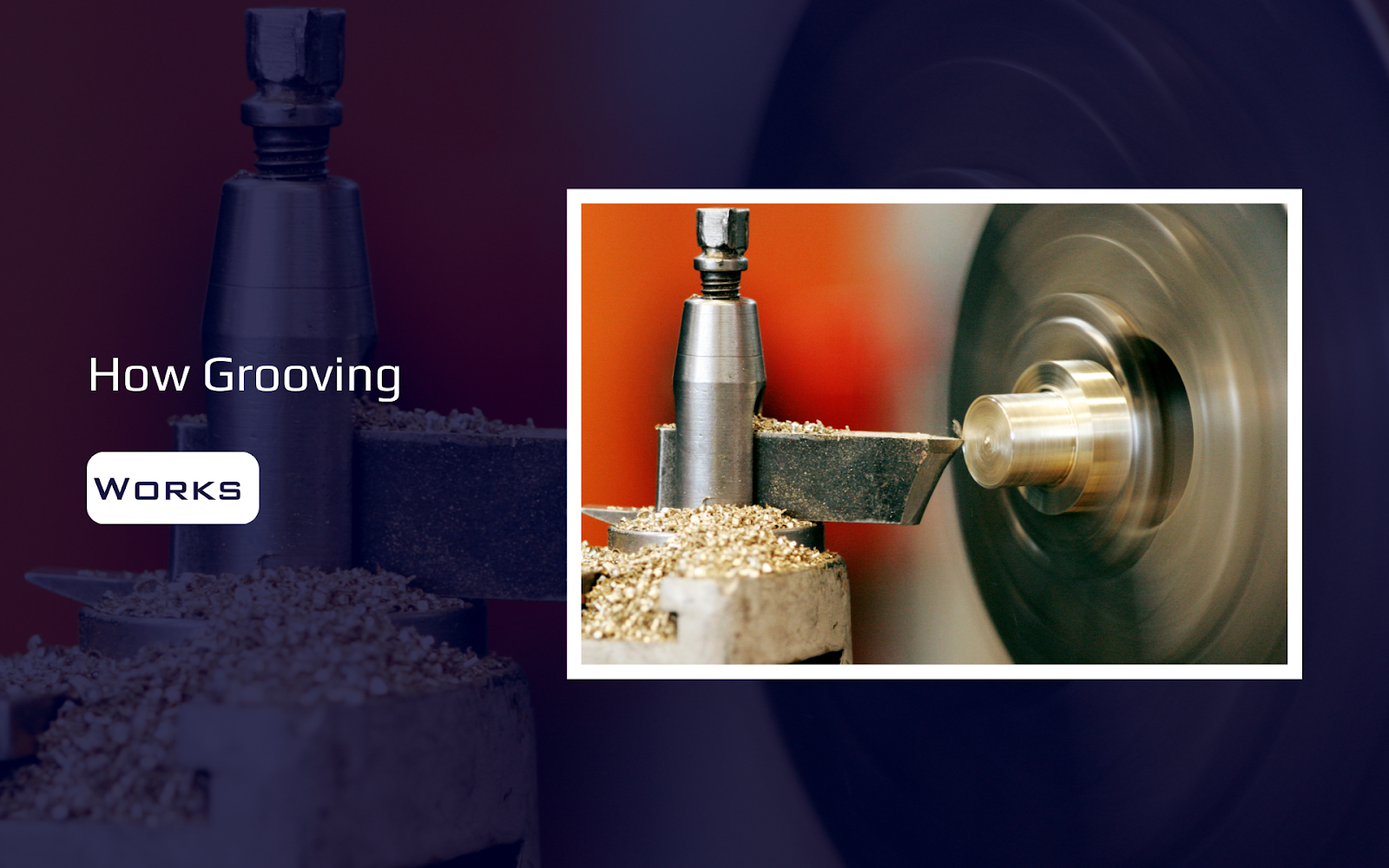

How Grooving Works
The process involves several key steps that ensure precise and efficient results. Here’s an overview of how it typically works:
- Setup and Tooling: Proper tool selection is made based on the material and groove dimensions. The tool is then mounted on the machine, and the workpiece is securely clamped.
- Cutting Parameters: The cutting parameters, including cutting speed, feed rate, and depth of cut, are adjusted based on the material and groove requirements.
- Operation: The tool cuts the workpiece to create the desired groove. The machine continuously feeds the workpiece into the tool until the groove is complete.
- Finishing: Once the groove is created, the surface is finished to meet the desired specifications. This may include polishing, deburring, or other post-machining processes.
Key Considerations for Successful Operations
To achieve high-quality grooves, manufacturers must consider several factors:
- Material Selection: The material being used affects the cutting speed, tool wear, and surface finish. Softer materials may allow for faster cutting, while harder materials may require slower speeds and more robust tools.
- Cutting Parameters: Proper cutting speed, feed rate, and depth of cut are crucial to achieving precision and preventing tool damage.
- Tool Selection: Choosing the right tool for the job ensures that the grooves are created with the desired dimensions and quality.
- Chip Control: Managing chips is essential to avoid clogging and ensure a smooth surface finish. Effective chip management involves using chip breakers and the appropriate coolant.
Challenges in Grooving and How to Overcome Them
Like any machining process, it can present challenges. Here are a few common issues and how to address them:
- Tool Deflection: Tool deflection can cause inaccurate grooves. To mitigate this, ensure that the tool is properly aligned and use rigid tools.
- Excessive Heat Generation: Heat can cause tool wear and poor surface finish. Use proper cooling techniques and reduce cutting speed when necessary.
- Inaccurate Groove Dimensions: This can be caused by incorrect machine calibration or tool wear. Regularly check tool condition and machine settings to maintain accuracy.
Applications of Grooving in Various Industries
Grooving plays a crucial role in several industries. Here’s how it’s used in some key sectors:
- Automotive: Grooving is used for components like pistons, valves, and other mechanical parts that require precise grooves for assembly and function.
- Aerospace: Grooves are essential in turbine blades, fuel nozzles, and other critical aerospace components.
- Medical Devices: In the medical field, grooving is used for surgical instruments, implants, and other precision components.
- Manufacturing: Grooving is widely used in general manufacturing for creating components that need seals, o-rings, or other mechanical fasteners.
Innovations in Grooving Technology
As technology evolves, so does the process. CNC machines and automated systems have revolutionized by offering higher precision and faster production speeds. Additionally, advances in tool materials, such as carbide inserts and ceramic coatings, have improved tool life and cutting efficiency.
Conclusion
Grooving is an essential process in precision machining, offering the ability to create accurate grooves in a wide range of materials. By understanding the different techniques, tools, and considerations involved in grooving, manufacturers can optimize their operations for maximum efficiency and quality.
If you need high-quality machining, look no further than professional CNC machining services. With the right tools, materials, and expertise, you can achieve precise grooves that meet your project requirements.
FAQs
- What is the difference between grooving and parting?
- Grooving creates recesses in the material, while parting separates a workpiece into two parts.
- Can grooving be done on CNC machines?
- Yes, CNC machines are highly effective for performing precise grooving operations.
- What’s the best tool for grooving stainless steel?
- Carbide tools are often the best choice for grooving stainless steel due to their hardness and heat resistance.
- How can I improve the accuracy of my grooves?
- Regularly maintain your tools, check machine calibration, and adjust cutting parameters for better accuracy.
